25% Off

Highland Park HT12 12'' Slab Saw

Code:
33-100-005
$4,703.88 ex gst
$3,527.91 ex gst

Stock Locations

  • Online:
    Out of Stock
  • Sydney Branch:
    Out of Stock
  • Melbourne Branch:
    Out of Stock
  • Brisbane Branch:
    Out of Stock
  • Adelaide Branch:
    Out of Stock
  • Perth Branch:
    Out of Stock

Need this item? If it's in-store but not online, just add a comment with the stock code at checkout and we'll be in touch! (extra freight may apply)

Call 1300 852 999 for Availability
Make an Enquiry

Description

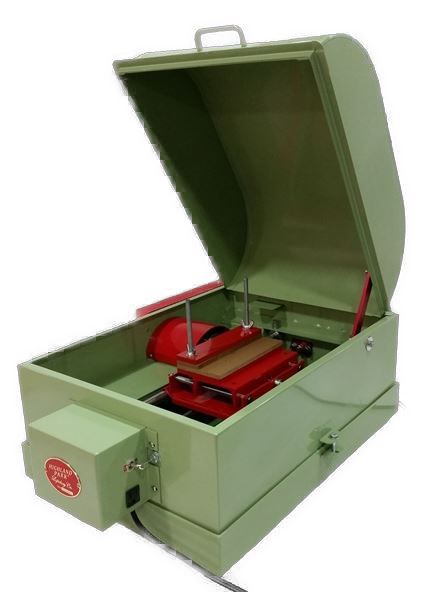

HIGHLAND PARK 12 INCH SLAB SAW MODEL HT12 WITH POWERFEED AND CROSS-FEED VISE

WORKPIECE SIZE:

~ 115 x 180mm Cross Section

FEATURES AND SPECIFICATIONS:

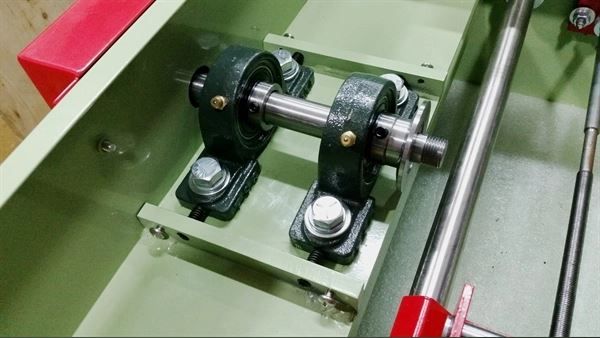

~ ARBOR SHAFT – Tool steel machined to 3/4 inch bearing diameter. 5/8 inch diameter for blade arbor

~ BLADE FLANGES – Steel 2 inch outside diameter

~ BLADE - GreenLine Agate Eater sintered diamond blade

~ SAFE START SYSTEM - Contactor control system reduces risk of accidental startup

~ AUTOMATIC CUT-OFF SWITCH – Adjustable for length of cut

~ POWERFEED – Approximate workpiece infeed rates 285mm per hour, 4.75mm per minute

~ SPLIT NUT DRIVE – Engages carriage with powerfeed screw. Released by a flip of the handle for quick carriage return

~ PRECISION CARRIAGE – Carriage rides on precision-ground hardened steel rails retained by adjustable precision roller bearings for smooth travel

~ CROSSFEED WAYS – 1/2 inch precision ground steel

~ SAW BOX – Welded 16 gauge steel. Inside dimensions 455mm wide x 230mm deep x 635mm long. Overall height with hood closed – 412mm

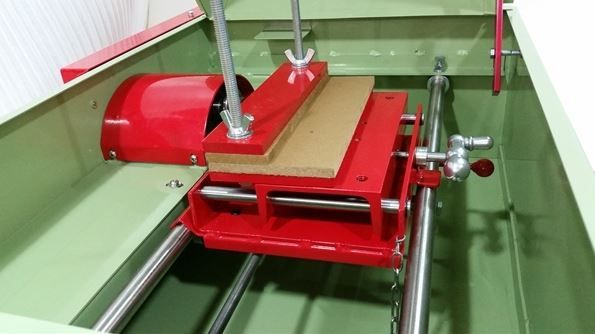

~ VICE – Steel vice jaws

~ Maximum workable jaw opening 115 x 180 mm

~ Lateral travel of vice assembly 65 mm

~ V-Belt connects motor to saw blade

~ MOTOR – 230 volt 50 Hz 1/2 H.P. with thermal protection and start capacitor

~ Shipping weight – 68kg

** All Dimensions are approximate**
