DADO Laser Welder - 20 Watt







Many years have been dedicated to realising the goal of being able to offer the market what it has wanted for a long time - an affordable laser welder. The DADO is small, lightweight and portable. It can easily be placed anywhere. It will fit in any small workshop or directly on the workbench of a jeweller, goldsmith, hobby shop, or even hobbyist.

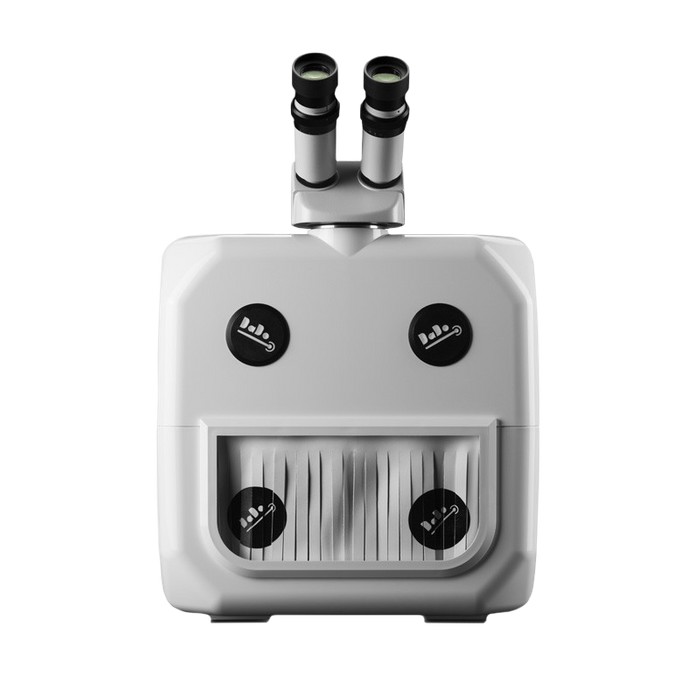

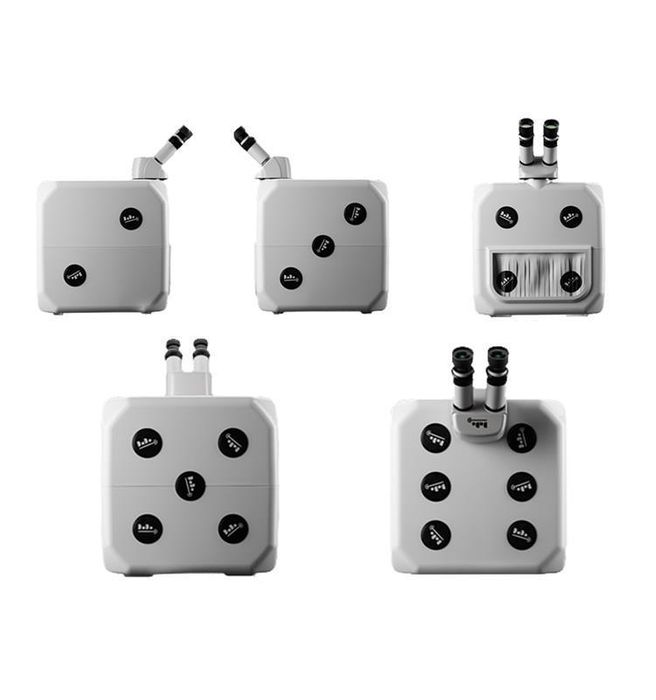

The DADO Laser Welder

• Easy to use

• 10x microscope

• 0.2 - 1.5 mm spot size

• Comes with everything you need

• Small footprint - can be placed anywhere

DADO WELDING APP : The DADO comes with it’ s own app that allows users to set their welding parameters right from their smart phone or tablet.

VOCAL ASSISTANT: Let the DADO talk to you. If an error occurs while you are using the DADO, the voice assistant will speak the error to you.

LED STATUS INDICATOR : The LEDs inside the welding chamber will change color as you change the parameters. Colors indicate power levels

ACCESSORIES INCLUDED : A complete system should be complete. Thats why the DADO comes equipped with all the accessories you need

Specifications

· Laser source and wavelength ND: YAG 1064 NM

· Impulse time 0,1 ÷ 6 ms

· Spot diameter 0,2 ÷ 1,5 mm

· External control Mobile App

· Input power 110/230 V AC, 50/60 hz

· Power system, number of phases 1

· Average power 150 W

· Max power 1,8 KW

· Ampere T16A

· Frequency 50-60 Hz

· Dimensions 340X340X340 mm

· Weight 15 Kg

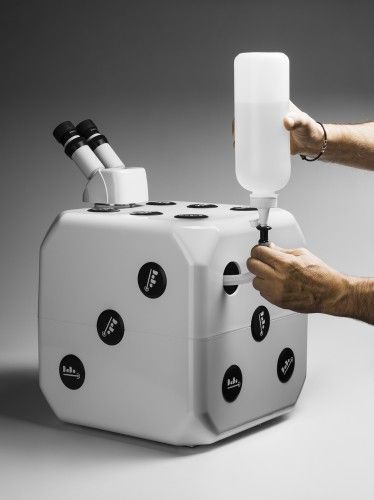

· Cooling Liquid

· Microscope 10X

· Working environment 17-35°C UR 65% non-condensing

· Noise level < 70 Db (A)



Click here to explore the comparison between Pulse Arc Welding vs Laser Welding

Click here to use the AJS Welder Selector, which will help you determine the best welder for your particular needs.

Click here to download the Laser Welder brochure from Sunstone Welders
